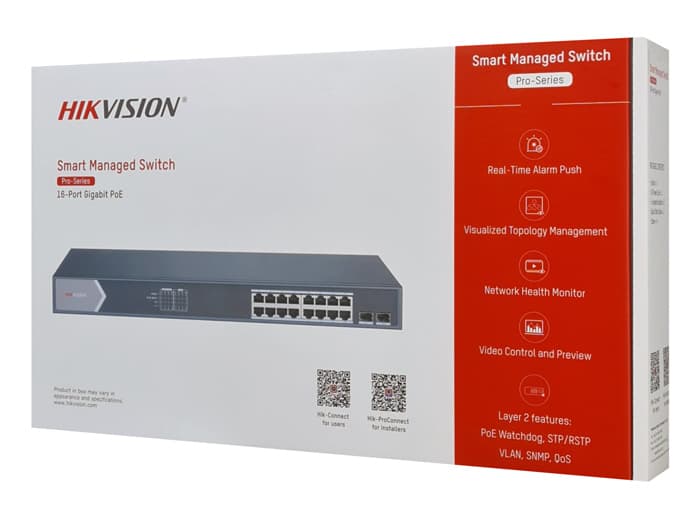

HIKVISION Managed switch DS-3E1518P-SI, 16x PoE & 2x SFP ports, 1000Mbps

HIKVISION Managed switch DS-3E1518P-SI, 16x PoE & 2x SFP ports, 1000Mbps Το switch της Hikvision επεκτείνει το δίκτυο σας με 16x θύρες δικτύου PoE και 2x θύρες SFP με ταχύτητες 1000Mbps. Είναι ιδανικό για χρήση με συστήματα ασφαλείας, συναγερμούς, κάμερες κ.λπ. -16x gigabit PoE ports and 2x gigabit fiber optical ports -IEEE 802.3at/af standard for PoE ports -Network topology management, alarm push, network health monitor. -6 KV surge protection for PoE ports -AF/AT camera can reach up to 300 m in extend mode -PoE watchdog to auto detect and restart the cameras that do not respond -Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on Τεχνικά χαρακτηριστικά PoE Power Supply PoE Standard IEEE: 802.3af, IEEE 802.3at PoE Power Pin: End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: PoE: Ports 1 to 16 Max. Port Power: Port 1 to 16: 30 W PoE Power Budget: 225 W Network Parameters Port Number: 16x gigabit PoE port and 2x gigabit fiber optical port Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z Forwarding Mode: Store-and-forward switching Working Mode: Standard mode (default), Extend mode MAC Address Table: 8 K Switching Capacity: 36 Gbps Packet Forwarding Rate: 26.784 Mpps Internal Cache: 4.1 Mbits Software Function Device Maintenance: Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync Port Configuration: Port rate configuration, flow control, and ports enabling Long Range: Up to 300 m transmission PoE Configuration: PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond. PoE enabling: Support Port Rate-Limiting: Rate-limiting for ingress and egress ports Storm Control: Storm control of unknown unicast, multicast and broadcast Port Mirroring: Support Link Aggregation: Static link aggregation supported Port Isolation: Ports in isolation group cannot communicate with each other. QoS: WRR and SP scheduling and port priority VLAN: 4094 VLANs STP: STP and RSTP protocols SNMP: SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces LLDP: LLDP protocol supported for port configuration, global configuration and neighbor discovery General Shell: Metal material Net Weight: 2.735 kg Dimension (W ? H ? D): 440 x 44 x 220.8 mm Operating Temperature: -10 °C to 55 °C Operating Humidity: 5% to 95% (no condensation) Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W Max. Power Consumption: 250 W Power Consumption in Idle: 25 W Περιεχόμενα συσκευασίας Switch AC power cord 2x L-shaped bracket 4x screw Quick start guide
